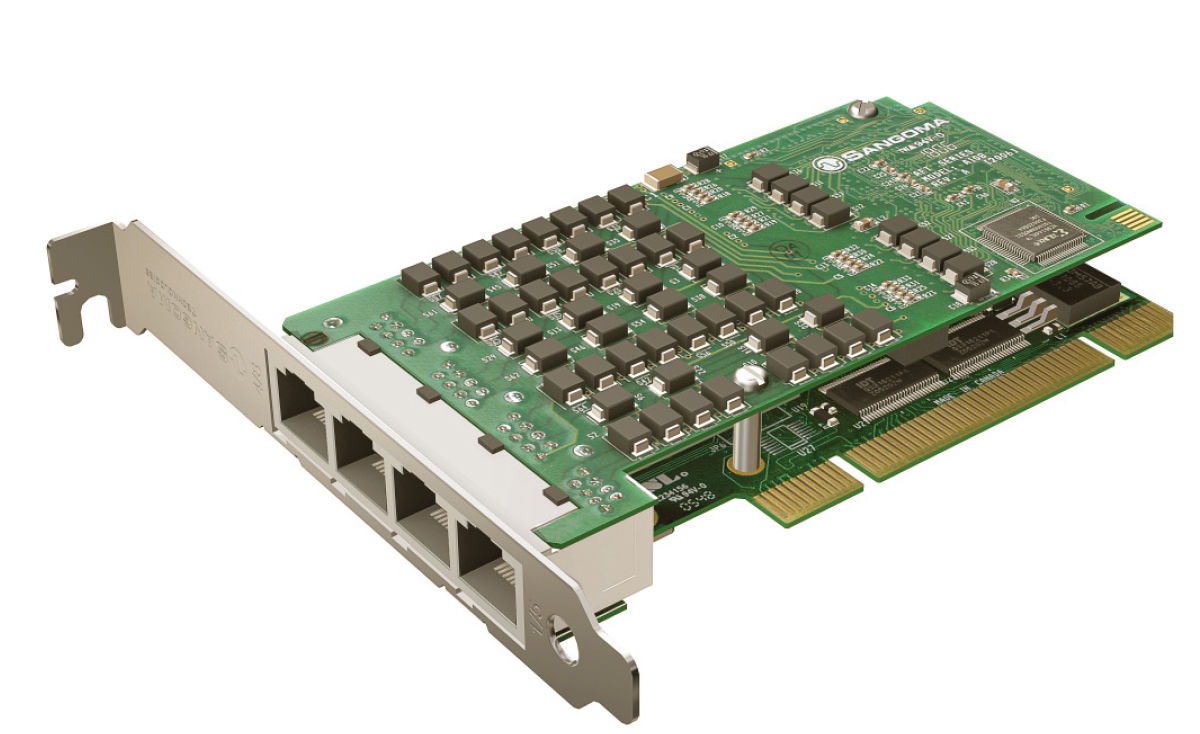

Obtainable in both PCI (A108) and PCI Express (A108-X) form factors, the A108 provides up to 16.4Mbps of full duplex data throughput or 240 voice calls over eight T1 and or E1 lines to support high performance PCI-based routing and telephony systems. Advanced clocking features allow E1 and T1 lines to be mixed with full synchronization.
As part of Sangoma
Features
Operating Systems
Linux (all versions, releases and distributions from 1.0 up).
Line Protocols
Voice CAS
MFC/R2
PIR
PRI
ATM
Frame Relay
X.25
HDLC,
PPP
SS7
Transparent bit-stream
BSC
Higher Level Protocols
IP/IPX over Frame Relay/PPP/HDLC/X.25
X.25 over Frame Relay (Annex G)
SNA over X.25
IP over ATM
BSC over X.25 (DMT and TCOP)
PPPoE
PPPoA
Diagnostics Tools
SNMP
WANPIPEMON
System logs
TE/E1 Status Alarms
AIS: Alarm Indication Signal
LOS: Receive Loss of Signal
RED: Telco Red Alarm condition
OOF: Out of Frame
RAI: Remote Alarm Indication (Yellow Alarm)
Certifications
AFIC-2016
FCC Part 15 Class A
FCC Part 68
CE
Technical certifications in Russia, Malaysia and Australia
zoom in
