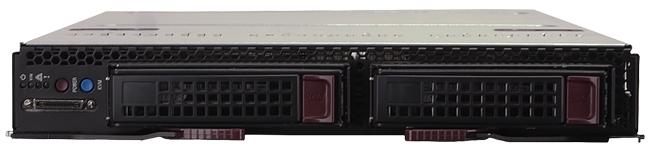

BR-8110 Server Blade
Features
Processor/Cache
  • 2 x Intel Xeon X5355 Quad-Core 2.66GHz
  • EM64T
  • 8MB (2x 4MB) L2 Smart Cache
  • 1333MHz Tray
System Storage
  • 1TB Raid 1
System Memory
  • Eight 240-pin DIMM sockets
  • Supports up to 32 GB 667 / 533MHz DDR2 ECC FB-DIMM memory
  • Dual-branch memory bus
  • Memory must be populated in pairs
  • 667 / 533MHz FB-DIMM
  • 4GB (4 x 1GB) Registered ECC FBD LP 667MHz - Interleaved
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
  • Supports Intel
On-Board Devices
  • Intel
  • MCH + PXH + ESB
  • 667/1066/1333MHz System Bus
  • Supports Intel
  • Supports memory mirroring + sparin
  • ESB2 SATA Controller
  • RAID 0, 1 support
  • IPMI 2.0
  • Intel
  • Supports SerDes (Serializer/Deserializer)
  • Intel
  • ATI ES1000 controller with 16 MB of video memory
  • Winbond 83627HF chip
  • Clock Generator CK410B chip
Front Panel
  • KVM button
  • Power On/Off button
  • Power LED
  • UID / KVM LED
  • Network Activity LED
  • Fault LED
  • SUV (Serial/USB/Video
  • KVM Connector
Dimensions
  • Height 11.32" (288 mm)
  • Width 1.67" (42.4 mm)
  • Depth 18.5" (470mm)
  • Maximum weight 8.6 lbs (3.9 kg)
Drive Bays
  • Two 3.5" hot-swap drive bays
I/O Ports
  • 1 IDE Slot
  • Mezzanine Slot supporting 2-Port InfiniBand Controller
  • 1 Front Connector for Supermicro KVM Card
  • 2 Power Connectors (to Backplane)
  • 1 SIMBL Slot
Operating Environment / Compliance
  • Operating Temperature: 10
  • Non-operating Temperature: -40
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)
Electromagnetic Compatability (EMC)
  • United States / Canada FCC- Emissions (US) Verification
  • Europe EN55022
  • Europe EN55024
  • Europe EN61000-3-2
  • Europe EN61000-3-3
  • Europe CE
  • Germany TUV
Safety Compliance
  • United States/Canada UL60950-1
  • Europe EN60950-1, CE
System BIOS
  • 8Mb Flash EEPROM with Phoenix
  • Plug and Play (PnP)
  • SMBIOS 2.3
  • DMI 2.1
  • PCI 2.2
  • ACPI 1.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
